About this machine

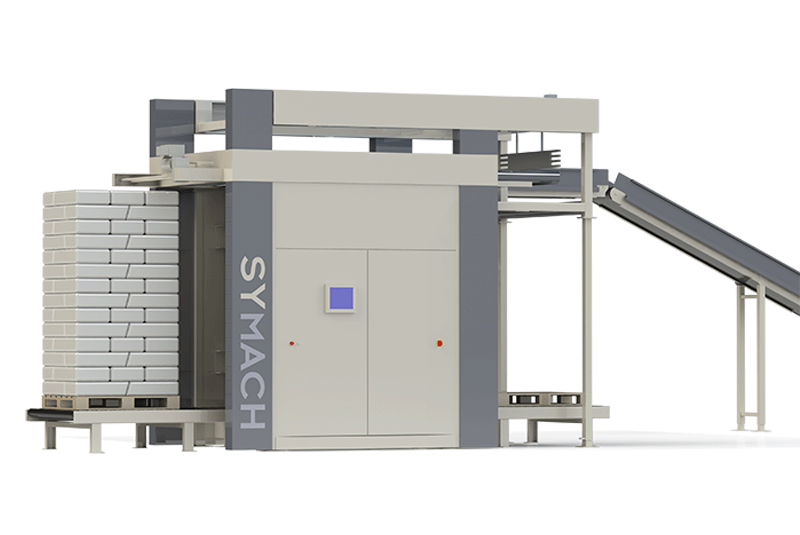

The 3500S offers dependable and high-speed palletizing capabilities for various solutions including bags, bales, and cases, by merging the original 3500 Master palletizer with the best Thiele & SYMACH palletizing platform options.
With a more compact footprint, the 3500S has a smaller footprint than a robotic palletizing solution making it the ideal choice for challenging and tight environments. Our upstream and downstream options allow your palletizing project to be engineered to your specific needs.
The 3500S uses the best design techniques. A key feature of the 3500S is an intuitive drag and drop HMI. Next generation design thinking has also been applied for an optimally clean design and a robust build quality to minimize downtime.
Product Details
- 12+ languages standard available
- Connection to an ERP/WMS/MES system for information exchange between the Thiele | SYMACH machines and the customer's enterprise and/or control systems
- Pallet transport height (top of roller/chain conveyor): 450mm
- Remote access to the equipment for Thiele & SYMACH technicians (if a network connection is available)
Technical Data
Production Speed
- Up to 40 units per minute
Power Requirements
- 480V, 3 phase, 60Hz
- 480V, 3 phase, 50Hz
Air Requirements
- Standard 7,5 bar (110 PSI)
- Possibility for 5-7,5 bar with the optional booster/buffer tank combination
Maximum Load Size
- Length 1600mm x Width 1200mm
Maximum Load Height
Available Control Systems
Ambient Temperature
Options
Pallet Dispensing
Our pallet dispensing module automates the pallet loading process and is designed to dispense empty pallets onto a conveyor system, which ensures a continuous supply of pallets to meet production demands. Multiple options allow complete flexibility and customization based on your exact specifications and needs.
Slip Sheet Dispenser
We offer dispensers for base, intermediate and top sheets. Base sheets can be placed on the empty pallet with precut sheets or from a roll. Intermediate sheets can be placed in between each layer to add stability to your stack and a top sheet dispenser can be added after the pallet stacking is complete for extra protection.
Pallet Wrapper
Our rotating arm and turntable wrapping machines enhance the pallet stability with options for both net and stretch film. These sturdy machines include a clamping unit for optimal tension and secure wrapping. The option to add craft paper as an intermediate layer protects against light damage.
